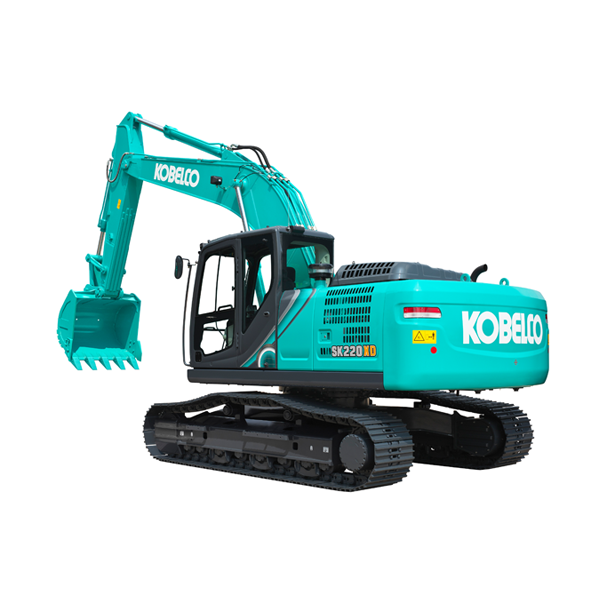

SK220XDLC-10 - GENERAL SPECIFICATION

full-image

PERFORMANCE


  • Bucket capacity ISO heaped           m3- 0.93 – 1.2
  • SWING SPEED                                       min-1{rpm}13.3
  • TRAVEL SPEED                                      km/h 6.0/3.6
  • GRADEBILITY                                         % {º}70{35}
  • Bucket Digging Force143{2.4m} 143{2.94m}kn
  • Bucket Digging force – With Power Boost     157{2.4m} 157{2.94m}kn
  • Arm Crowding Force      121 {2.4m} 102 {2.94m}kn
  • Arm Crowding Force – With Power Boost 133 {2.4m} 112 {2.94m}kn
  • Drawbar Pulling Force 227 (ISO 7464), 228 (ISO 7464)kn
  • WEIGHT


  • Operating Weight(xdlc/XD)        - 22,200/22,800,21,800/22,300
  • Ground Pressure (xdlc/XD)           (46, 36)(49, 38)kPa
  • Shoe WIDTH                                     600,800MM
  • ENGINE


  • Model                                         - J05ETA
  • Type - Direct injection, water-cooled, 4-cycle diesel engine with turbocharger, intercooler(Tier3-compliant engine)
  • Rated Power - 158 (118)/2,000 (ISO 14396) HP (KW)/min-1
  • Max. Torgue - 592 /1,600 (ISO 14396) N-m/min
  • FUEL TANK                                                            320L
  • HYDRAULIC SYSTEM

  • Pump - Two variable displacement pumps + one gear pump
  • Max.Discharge Flow -             2 x 220, 1 x 20L/min
  • Relief Valve Setting – Boom, arm and bucket - 34.3{350} MPa {kgf/cm2}
  • Relief Valve Setting – Power Boost- 37.8{385} MPa {kgf/cm2}
  • Swing Motors                 - AXIAL PISTON MOTOR
  • Travel Motors - 2 x axial-piston, two-step motors
  • Hydraulic Oil Tank
    140 Tank oil level, 244 Hydraulic system
