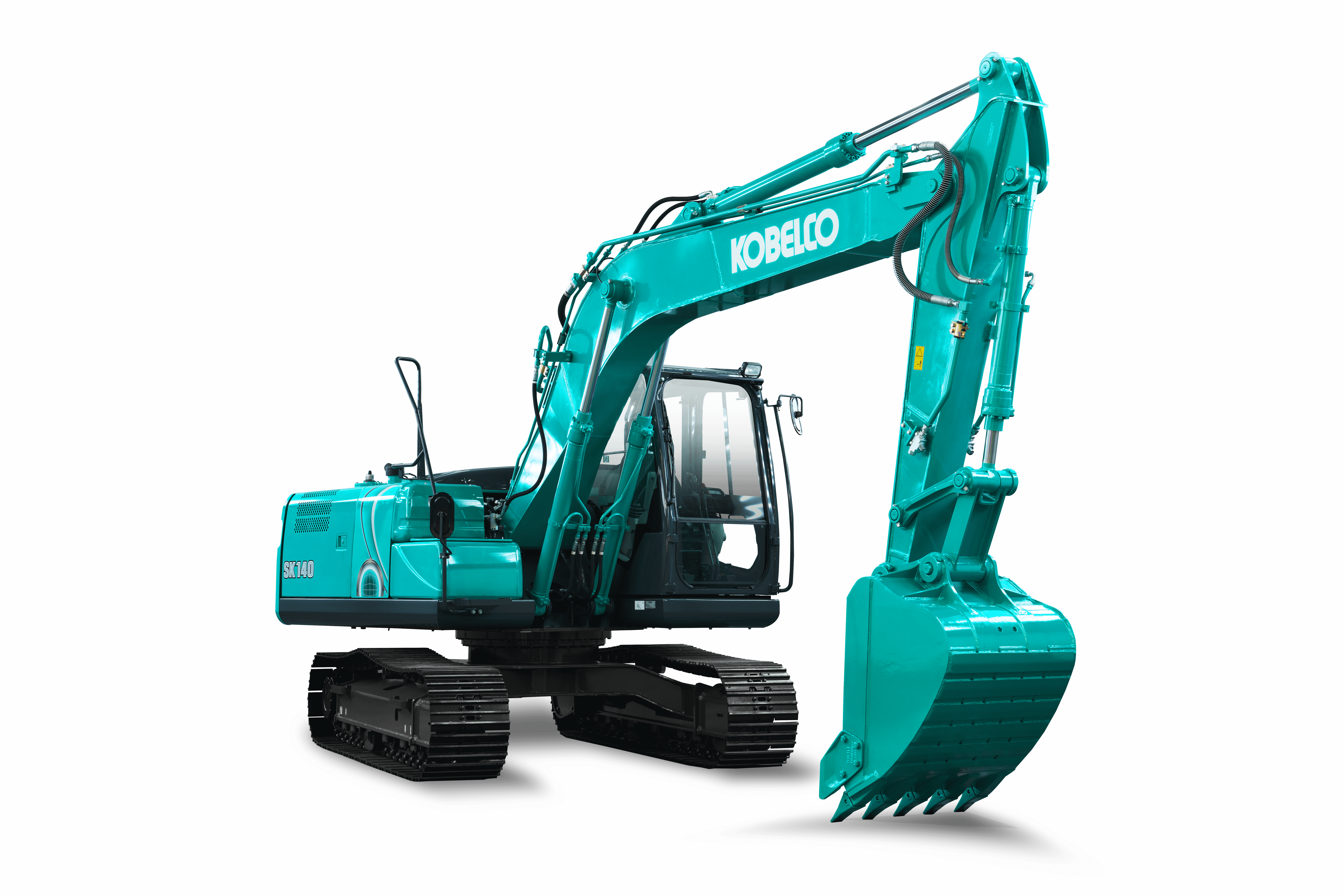

SK140-10 - GENERAL SPECIFICATION

full-image

PERFORMANCE


  • Bucket capacity ISO heaped           m3- 0.6-0.7
  • SWING SPEED                                       min-1{rpm}11.0
  • TRAVEL SPEED                                      km/h 5.8/3.4
  • GRADEBILITY                                         % {º}70 {35}
  • Bucket Digging Force(Short 2.09m)     89.2kn
  • Arm Crowding Force(Short 2.09m)      71.9kn
  • Drawbar Pulling Force          142(ISO 7464)kn
  • WEIGHT


  • Operating Weight                             13,000 kg
  • Ground Pressure canopy           41 {0.40}kPa
  • Shoe WIDTH                                             500MM
  • ENGINE


  • Model                                         - MITSUBISHI D04FR
  • Type - Direct injection, water-cooled, 4-cycle diesel engine with turbocharger, intercooler
  • Rated Power - 99.2(74.0)/2,000(ISO14396) kW/min
  • Max. Torgue - 375/1,600 (ISO14396) N-m/min
  • Displacement                                                   4.249L
  • FUEL TANK                                                            271L
  • HYDRAULIC SYSTEM

  • Pump - Two variable displacement pumps + one gear pump
  • Max.Discharge Flow -                           2 x 130, 1 x 20L/min
  • Relief Valve Setting – Boom, arm and bucket - 34.3{350} MPa {kgf/cm2}
  • Swing Motors                 - AXIAL PISTON MOTOR
  • Travel Motors - 2 x axial-piston, two-step motors
  • Hydraulic Oil Tank                        104 Tank oil level 160 Hydraulic systeml
