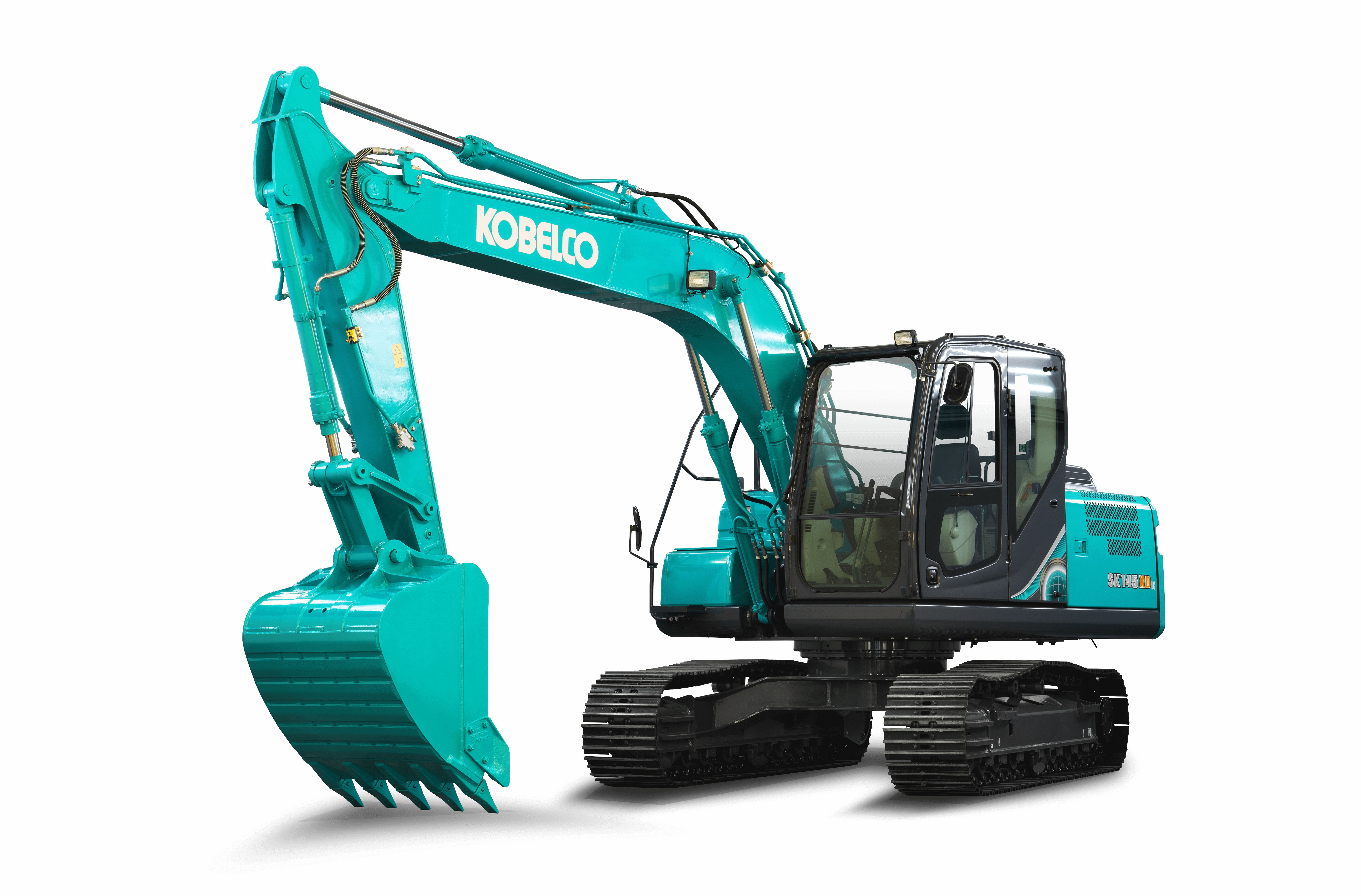

PRODUCTS || SK145XDLC

SK145-10 - GENERAL SPECIFICATION

Bucket capacity ISO heaped m3- 0.6-0.7

SWING SPEED min-1{rpm}11.0

TRAVEL SPEED km/h 5.8/3.4

GRADEBILITY % {º}70{35}

Bucket Digging Force(Short 2.09m) 89.2kn

Arm Crowding Force(Short 2.09m) 71.9kn

Drawbar Pulling Force 142(ISO 7464)kn

Operating Weight 13,800 kg

Ground Pressure canopy 41 {0.40}kPa

Shoe WIDTH 500MM

Model - MITSUBISHI D04FR

Type - Direct injection, water-cooled, 4-cycle diesel engine with turbocharger, intercooler

Rated Power - 99.2(74.0)/2,000(ISO14396) kW/min

Max. Torgue - 375/1,600 (ISO14396) N-m/min

Displacement 4.249L

FUEL TANK 271L

Pump - Two variable displacement pumps + one gear pump

Max.Discharge Flow - 2 x 130, 1 x 20L/min

Relief Valve Setting – Boom, arm and bucket - 34.3{350} MPa {kgf/cm2}

Swing Motors - AXIAL PISTON MOTOR

Travel Motors - 2 x axial-piston, two-step motors

Hydraulic Oil Tank
104 Tank oil level, 160 Hydraulic system 160 Hydraulic systeml
