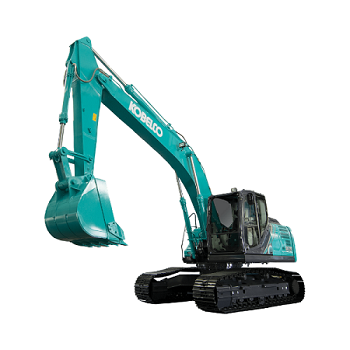

PRODUCTS || SK220

SK220-10 - GENERAL SPECIFICATION

Bucket capacity ISO heaped m3- 0.93

SWING SPEED min-1{rpm}13.3

TRAVEL SPEED km/h 6.0/3.6

GRADEBILITY % {º}70{35}

Bucket Digging Force 143{2.4m} 143{2.94m}kn

Bucket Digging force – With Power Boost 157{2.4m} 157{2.94m}kn

Arm Crowding Force 121 {2.4m} 102 {2.94m}kn

Arm Crowding Force – With Power Boost 133 {2.4m} 112 {2.94m}kn

Drawbar Pulling Force 228 (ISO 7464)kn

Operating Weight 20,600-21,100 kg

Ground Pressure canopy 46, 35kPa

Shoe WIDTH 600,800MM

Model - J05ETG

Type - Direct injection, water-cooled, 4-cycle diesel engine with turbocharger,intercooler

Rated Power - 158 (118)/2,000 (ISO 14396) HP (KW)/min-1

Max. Torgue - 592 /1,600 (ISO 14396) N-m/min

FUEL TANK 320L

Pump - Two variable displacement pumps + one gear pump

Max.Discharge Flow - 2 x 220, 1 x 20L/min

Relief Valve Setting – Boom, arm and bucket - 34.3{350} MPa {kgf/cm2}

Relief Valve Setting – Power Boost- 37.8{385} MPa {kgf/cm2}

Swing Motors - AXIAL PISTON MOTOR

Travel Motors - 2 x axial-piston, two-step motors

Hydraulic Oil Tank
140 Tank oil level, 244 Hydraulic system
