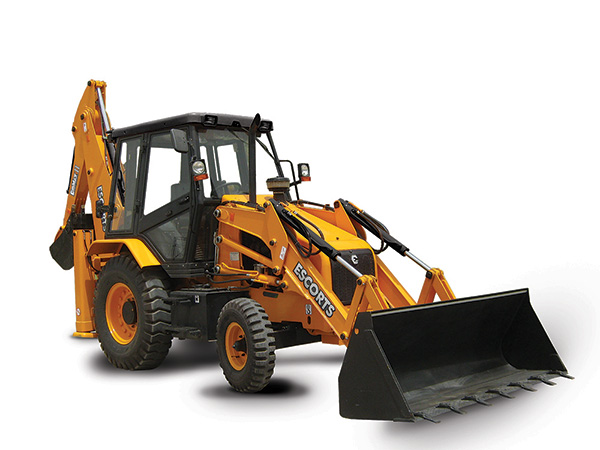

BACKHOE LOADER -GENERAL SPECIFICATION
ENGINE
- Proven, powerful and fuel efficient Kirloskar 4R1040TC, water cooled diesel engine
- Gross power : 56 kw (76 HP) at 220 rpm
- Meets Bharat stage - III (CEV) emmission norms
HYDRAULICS
- Hydraulic pumps - Tandem Gear Pump
- Maximum flow (both pumps) 117.5 lpm @ 220 rpm
- System main relief setting 225 bar
- Fixed pump, open centre two pump unloading energy efficient hydraulic system
TRANSMISSIONS
- Four speed (4F, 4R gear) Synchro shift reversing shuttle transmission provides superior traction, gradeability, higher force while entering pile or during
- dozing operation
- Neutral start provision prevents starting while shuttle is engaged.
- Gear lever with transmission disconnect switch adds to the overall ease of gear shifting
TYRES
- Front (Std): 9.00 x 16 - 16 PR
- Rear (Std) : 16.9 x 28 - 12 PR (Industrial)
TRAVEL SPEED
- 1st Gear 5.3 kmph / 4.6 kmph
- 2nd Gear 8.5 kmph / 7.0 kmph
- 3rd Gear 18.5 kmph / Not recommended
- 4th Gear 36.6 kmph / Not recommended
BRAKES
- Service brakes : Hydraulic actuated dual line, self adjusting, oil immersed, multi disc type on rear axle
- Parking brakes : Hand-opertated caliper disc brakes
AXLES
- Front steer axle with 16 deg oscillation for maximum ground contact in undulated condition
- Rear drive axle, rigidily mounted to chassis
STEERING
- Hydrostatic power steering in front wheel
- Hydraulic supply from pump via priority valve for quick response steering
- Working pressure : 120 bar
WEIGHT
- Operating Weight 9000 Kg
MONITERING SYSTEM
- GPS + GSM based equipment monitoring system is a standard firment and provides sms alerts for effective equipment management and acts as a diagnostic tool
SERVICE REFILL CAPACITIES
- Hydraulic System Oil : 110 litres
- Fuel Tank : 134 Litres
- Engine Colant : 15 litres
- Engine Oil : 11.5 litres
- Transmission Oil : 16.5 litres
- Rear axle Oil : 17.1 litres
- Brake reservoir Oil : 1.0 litres
WARNING MESSAGE
- Engine Coolant Temperature
- Hydraulic Oil Temperature
- Transmission Oil Temperature
- Engine Oil Pressure
- Battery Charging Status
- Machine Idle Information
- Fuel Level Information
OPTIONAL ATTACHMENTS
- Front tyre : 12.5 / 80 - 18, 12PR
- Heavy duty rear tyres: 14x25 - 20 PR
- Coal Bucket - 1.5 cum
- Multi Purpose (6 -in-1) Bucket
- Extra Power 90 HP Engine Loadmax II XP
- AC Cabin/AC with heater cabin
