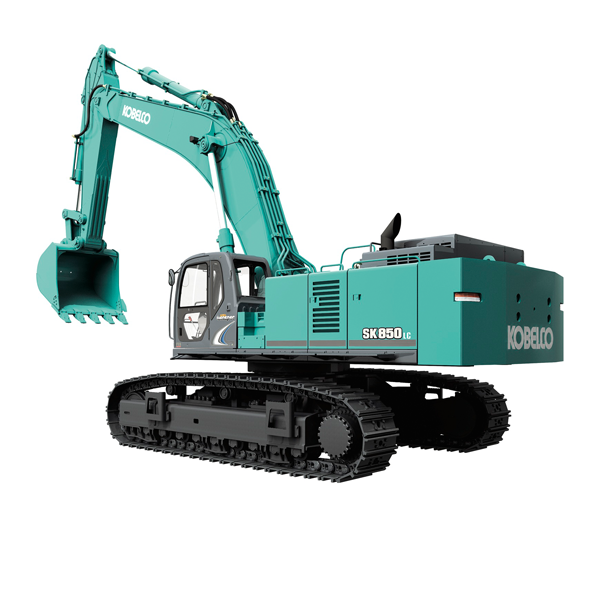

PRODUCTS || SK850HDLC-8

SK850HDLC-6 - GENERAL SPECIFICATION

Bucket capacity ISO heaped m3- 2.8 - 5.4

SWING SPEED min-1{rpm} 8.4

TRAVEL SPEED km/h 4.2/2.7

Gradeability % {º}70 {35}

Bucket Digging Force for Standard Arm(3.6m) 403 {40,900}kN {kgf}

Arm Crowding Force for Standard Arm(3.6m) 311 {31,600}kN {kgf}

Drawbar Pulling Force 637 {65} kN {tf}

Operating Weight with shoe 650, 750, 900(Standard Arm) - 78,200, 78,800, 79,900

Ground Pressure with shoe 650, 750, 900(Standard Arm) 106 {1.08}, 92 {0.94}, 78 {0.80}kPa {kgf/cm2}

Shoe WIDTH 650, 750, 900mm

Model - KOMATSU SAA6D14OE-5

Type - Direct injection, water-cooled, 4-cycle electrically-controlled common rail system type diesel engine with turbocharger,intercooler

Rated Power - 370{503}/1800 (ISO14396: 2002) kW{PS}/min-1{rpm}

Max. Torgue - 2197 / 1350 N-m/min

displacement 15.64L

FUEL TANK 960L

Pump - Two variable displacement pumps + one gear pump

Max.Discharge Flow - 2 x 504, 1 x 30L/min

Relief Valve Setting – Boom, arm and bucket - 33.0{337}MPa {kgf/cm2}

Swing Motors - AXIAL PISTON MOTOR

Travel Motors - 2 X axial-piston motor, two-step motors

Hydraulic Oil Tank
473 Tank oil level, 856 Hydraulic system
