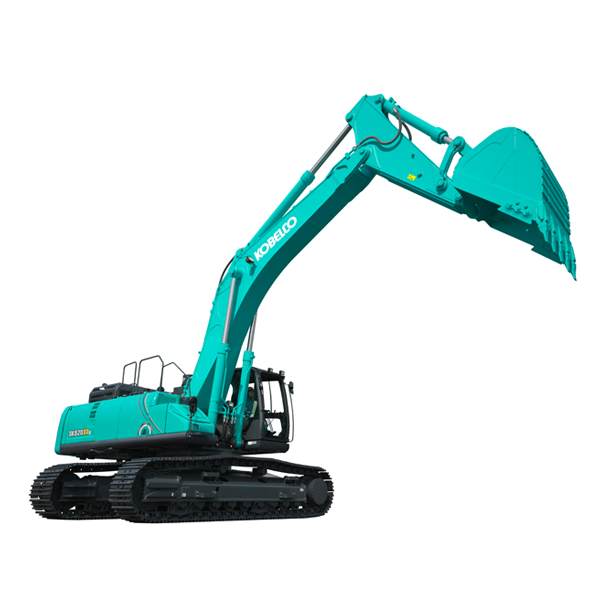

PRODUCTS || SK520XDLC-10

SK520XDLC-10 - GENERAL SPECIFICATION

Bucket capacity ISO heaped m3- 2.1 -3.4

SWING SPEED min-1{rpm} 7.6

TRAVEL SPEED km/h 5.4/3.4

Bucket Digging force ME 2.6 Arm 282kn

Bucket Digging force Short 3.0 Arm 270kn

Bucket Digging force ME 2.6 Arm with power boost 308kn

Bucket Digging force Short 3.0 Arm with power boost 295kn

Arm Crowding Force ME 2.6 Arm 239kn

Arm Crowding Force Short 3.0 Arm 224kn

Arm Crowding Force ME 2.6 Arm with power boost 261kn

Arm Crowding Force ME 3.0 Arm with power boost 245kn

Operating Weight(xdlc/XD) - 50,800, 51,000

Ground Pressure (xdlc/XD) 87-88kPa

Shoe WIDTH 600MM

Model - HINO P11C-WF

Type - Water Cooled, 4 cycle 6 Cylinder direct injection type diesel engine with intercooler turbo-charger

Rated Power - 344(257)/1,850 (ISO 14396) HP (KW)/min-1

Max. Torgue - 1470/1,400 (ISO 14396) N-m/min

FUEL TANK 638L

Pump - Two variable displacement pumps + one gear pump

Max.Discharge Flow - 2×370L/min

Swing Motors - AXIAL PISTON MOTOR

Travel Motors - Variable displacement piston pump

Hydraulic Oil Tank
371 Tank oil level, 631 Hydraulic system
