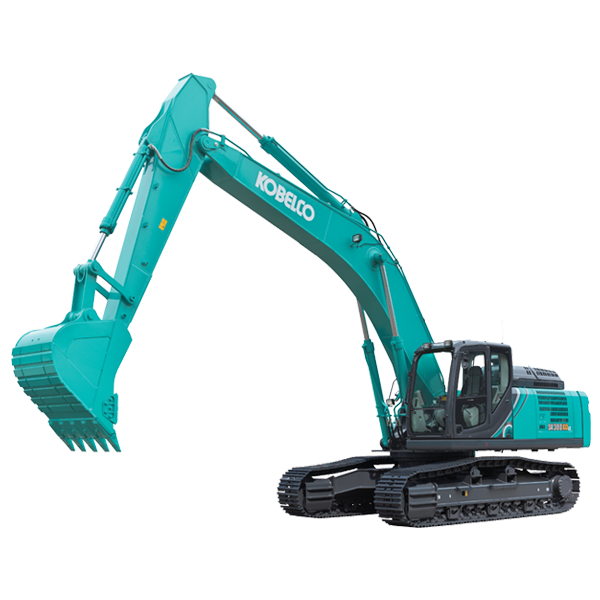

PRODUCTS || SK380XDLC-10

SK380XDLC-10 - GENERAL SPECIFICATION

Bucket capacity ISO heaped m3- 1.4 -2.3

SWING SPEED min-1{rpm}10

TRAVEL SPEED km/h 5.6/3.3

GRADEBILITY % {º}70{35}

Bucket Digging Force 229 (2.6m)kn

Bucket Digging force – With Power Boost 252 (2.6m)kn

Arm Crowding Force 207 (2.6m)kn

Arm Crowding Force – With Power Boost 228 (2.6m)kn

Drawbar Pulling Force 332 (ISO 7464)kn

Operating Weight(xdlc/XD) - 37,400, 37,800

Ground Pressure (xdlc/XD) (70,53)kPa

Shoe WIDTH 600,800MM

Model - HINO J08E

Type - Direct injection, water-cooled, 4-cycle diesel engine with turbocharger, intercooler(Tier3-compliant engine)

Rated Power - 97/2,100 (ISO 9249) 209/2,100 (ISO 14396) HP (KW)/min-1

Max. Torgue - 969/1,600 (ISO 9249)998/1,600 (ISO 14396) N-m/min

FUEL TANK 503L

Pump - Two variable displacement pumps + one gear pump

Max.Discharge Flow - 2 x 294, 1 x 21L/min

Relief Valve Setting – Boom, arm and bucket - 34.3{350} MPa {kgf/cm2}

Relief Valve Setting – Power Boost- 37.8{385} MPa {kgf/cm2}

Swing Motors - AXIAL PISTON MOTOR

Travel Motors - Variable displacement piston pump

Hydraulic Oil Tank
245 Tank oil level, 410 Hydraulic system
