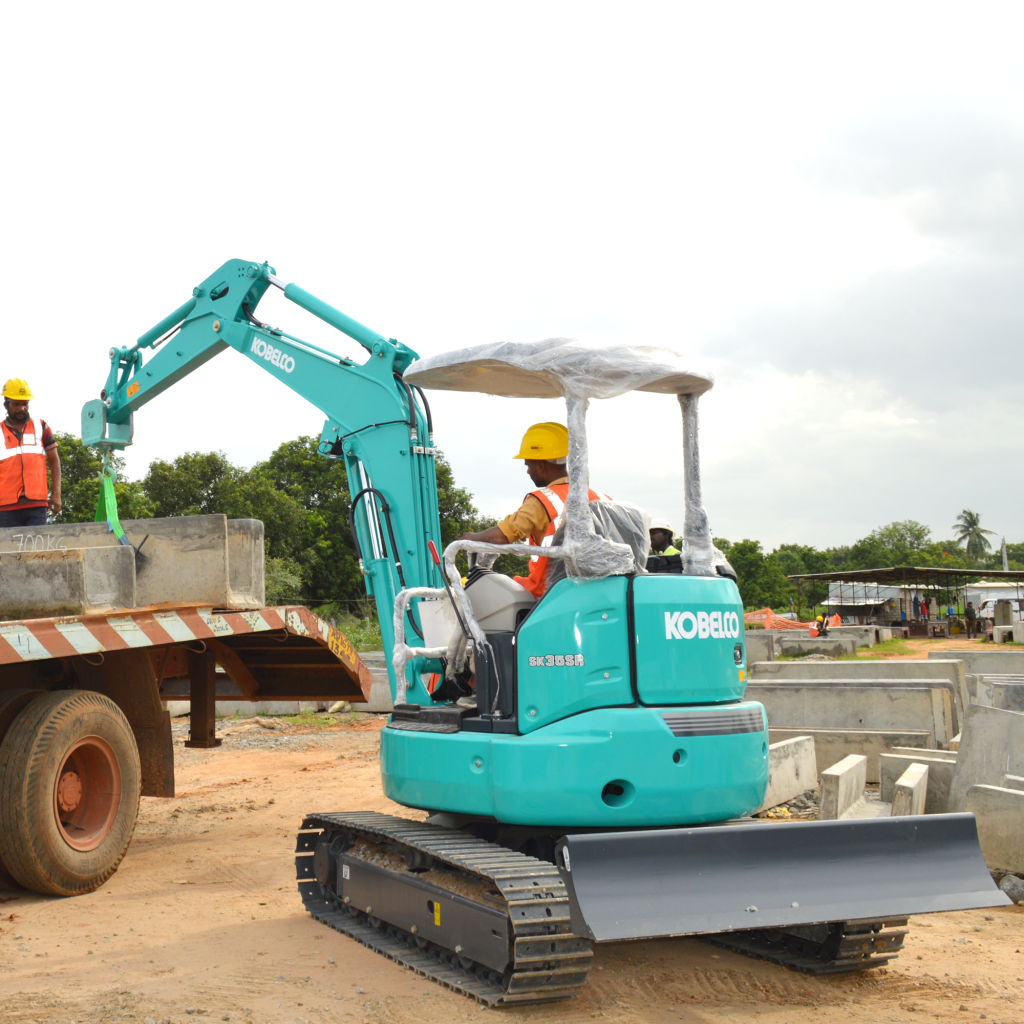

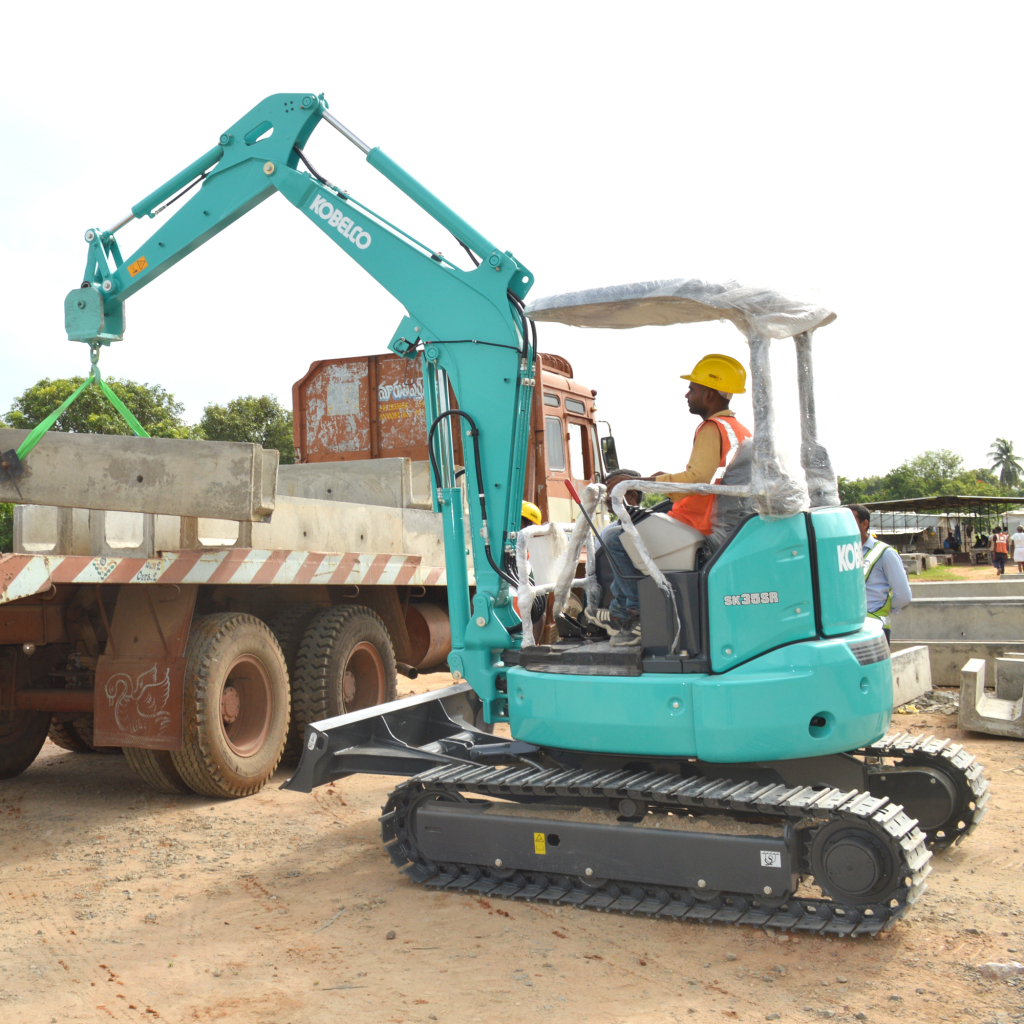

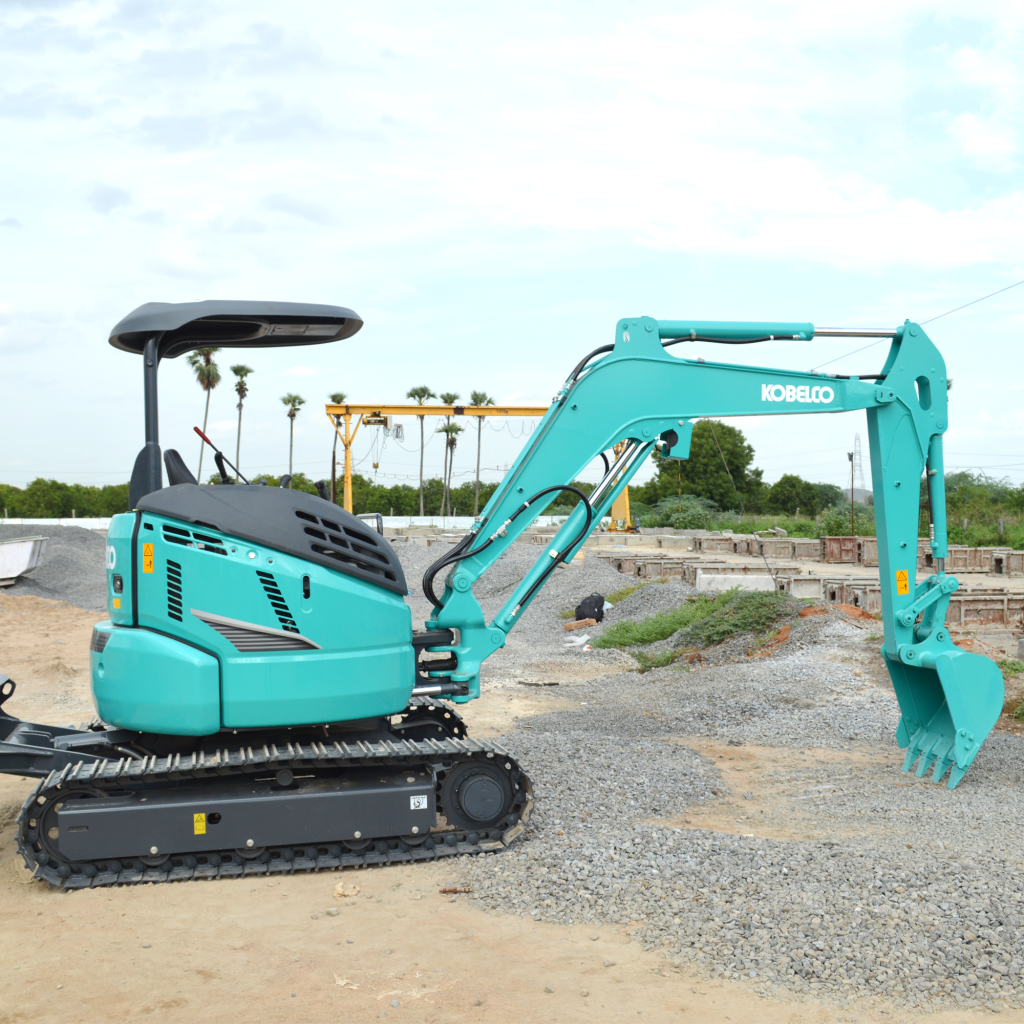

PRODUCTS || MINI SK30SR-6

SK30SR-6 - GENERAL SPECIFICATION

Bucket capacity ISO heaped m3- 0.12

Bucket width 700mm

Arm Length 1.37m

Bucket Digging force 27.8kn

Arm Crowding Force 22.8kn

Operating Weight 3,780 kg (canopy)

Ground Pressure canopy 33.2kPa

Shoe Steel Shoe

Model - YANMAR 3TNV82A-8

Type - DIRECT INJECTION,WATER COOLED,DIESEL ENGINE,4-CYCLE,3-CYLINDER

Rated Power Output - 18.1/2,400 kW/min-1 (ISO 14396)

Max. Torgue - 79.4/1,440 N-m/min-1 (ISO 14396)

Fuel 42.0l

Pump - TWO VARIABLE DISPLACEMENT PUMPS + ONE GEAR PUMP

Max.Discharge Flow - 23.0 l/min

Relief Valve Setting - 18.1/2,400 kW/min-1 (ISO 14396)

Swing Motors - AXIAL PISTON MOTOR

Travel Motors - 2 x AXIAL – PISTON, TWO STEP MOTORS

Hydraulic Oil Tank 20.4 (44.8)l
